Functionality and compatibility
FUNCTIONALITY AND COMPATIBILITY

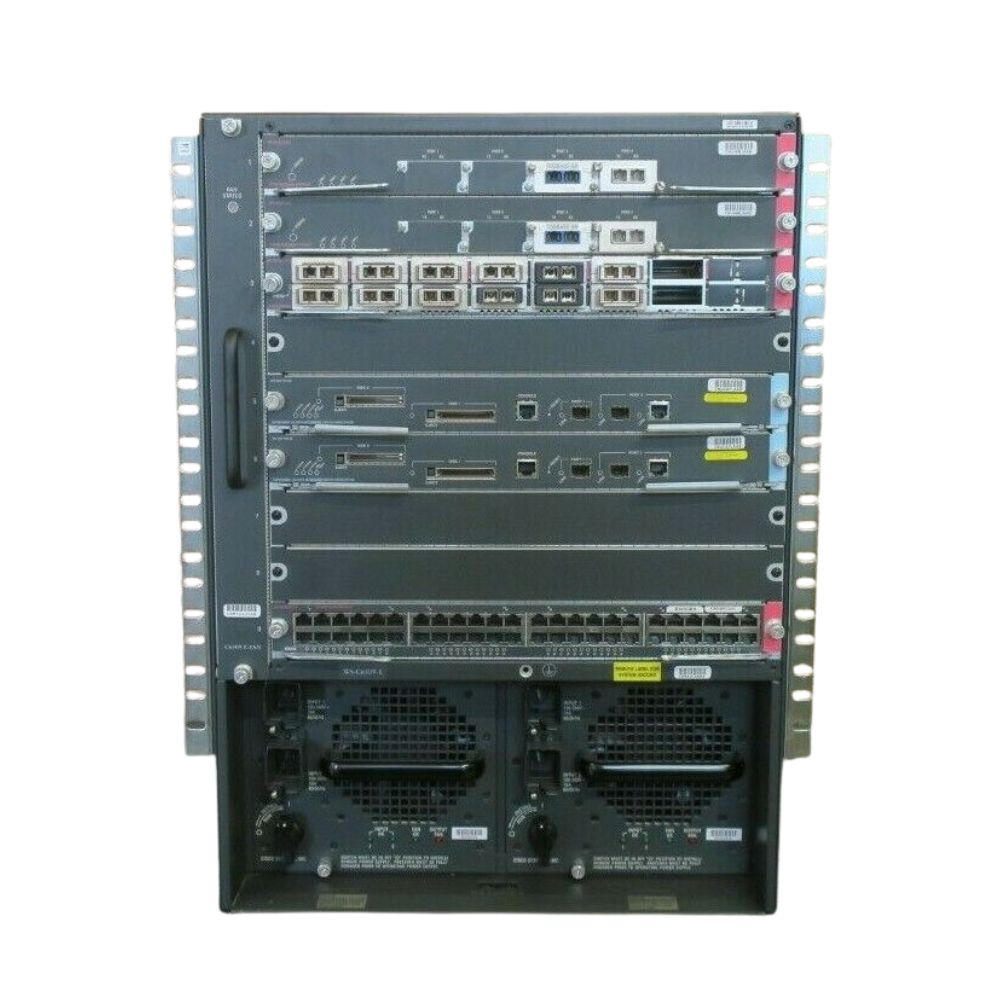

The Cisco WS-C6509-E chassis is part of the Catalyst 6500 series, offering a modular solution for large-scale enterprise networks. With 9 available slots, it allows the integration of network modules, supervisory cards and redundant power supplies, facilitating scalable architectures with high availability. It is ideal for data centers, university campuses or critical infrastructures that require flexibility and continuous growth.
Physical and technical characteristics.
PHYSICAL AND TECHNICAL CHARACTERISTICS
Modular design with 9 horizontal slots. Supports Catalyst 6500 supervisor cards and network modules. Supports redundant AC or DC power supplies (up to 2). System capacity: up to 720 Gbps on backplane. Installation in standard 19-inch rack. Dimensions: 43.8 x 44.5 x 31.1 cm (H x W x D). Certifications: FCC, CE, UL. Ideal for network environments that demand reliability, expansion and high performance.
Technical characteristics:
- Brand: Cisco
- Part Number: WS-C6509-E
- Model: Catalyst E Series
- 8x Line Card Slots
1x Supervisor Slots - Total slots
- Supervisor Redundancy
- Plots for power supplies
- Installed power supplies: 0 of 2
- Airflow: Chassis fan tray: Right to left
- Chassis height: 14 RU
- Hollows for fans: 1 (fan NOT included)
- Operating System: Cisco IOS
- Additional information: Rackmount included
